16ft JMC/JAC LC Model Refrigeration Truck Box Body With FRP Aluminum Duct Floor ISUZU Truck Chassis Spare Parts

Name: 16ft JMCJAC LC Model Refrigeration Truck Box Body With FRP Aluminum Duct Floor ISUZU Truck Chassis Spare Parts
Brand: GET VEHICLES | GET COLD CHAIN
Price: 8 USD

China 16ft JMC/JAC LC Model Refrigeration Truck Box Body With FRP Aluminum Duct Floor ISUZU Truck Chassis Spare Parts wholesale

Place of Origin : China

Brand Name : GET VEHICLES | GET COLD CHAIN

MOQ : 2 units

Price : $8,700.00/units 2-4 units

Product Name : 16ft Refrigeration truck box body

Min.Temperature Range : -25 ℃(degree centigrade)

Wall thickness and Insulation value : 82/90/105mm , 0.296 K.m2/W

Fire-Retardant Grade : "B" , According to EN 13501-01

Composite Wall Materials : FRP /GRP : glassfiber reinforced polyester.1.5~2.5mm

Floor : Aluminum Air Duct and Side Kick Plate

Portal and Rear Door : SS304 Portal with Two-wings Full open, 5-fold EPDM sealing

Side Door & Curtain Optional : Available for Customize

Thermo Material : Polyurethane resp.prepolymer-foam 40-45kg/cbm

Shipment : Complete Built up (CBU) or Flat-Packed

Contact Now

Brief Instruction

GET VEHICLES | COLD CHAIN BOX Refrigeration Truck body ,Thanks to the modular system, our box body can be individually configured for a wide range of applications. Logistics challenges are rising with consumers' more exacting requirements. The GET COOL truck box body is a high-performance truck with box body designed to meet individual requirements, which fits all well-known truck manufacturers' chassis.

Main Parameters

16ft JMC/JAC LC Model Refrigeration Truck Box Body With FRP Aluminum Duct Floor ISUZU Truck Chassis Spare Parts

DESCRIPTION

EXTERIOR SIZE (MM)

INTERIOR SIZE(MM)

EX-L

Ex-W

Ex-H

Box Type

REFRIGERATED BOX

4,877

2,200

4,717

2,040

2,030

Panel Type

FRP SCS-HP Panel

Temperature

-18 ℃

Volume

20 m³

16.0 ft

7.2 ft

15.5 ft

6.7 ft

Panel Area

53 ㎡

FRP 2mm/PUR:40kg/m³±2 FRP Panels (Excluding Floor)

Panel Details

Wall types

Thickness

Structure( Inter.Skin + Insulation+Exter. Skin)

Remark

Side Wall Panel

80.00mm

FDA “Approvable” CFRP + XPS + FRP

Front Wall Panel

80.00mm

FDA “Approvable” CFRP + XPS + FRP

With Refrigeration Units Installation Embedded Beam

Rear Wall Panel

80.00mm

FDA “Approvable” CFRP + XPS + FRP

with Door Hinger Installation Embedded Strengthen

Roof Wall Panel

90.00mm

FDA “Approvable” CFRP (Interior) + XPS + Anti UV FRP (exterior)

Floor Panel

80.00mm

Aluminum Air Duct (Interior)+PUR (injection Foaming 45kg/m³)+FRP

With Cross Beam Embedded

Standard: Floor with Alu.Duct for America Market

Best Cold Air Circle

Optional : FRP Flat Floor

Better for flat loading

Rear Door

Door Opening	Standard: 2 Panel Full Opening
Rear Door Frames	Stainless Steel SUS304
Rear Door Frames		W=	2,040	H=	2,030
Container Lock	SUS304	SIZE:	φ22
Hingers	SUS304	QTY	3	Sets/Side
Rubber Seal	High Quality EPDM

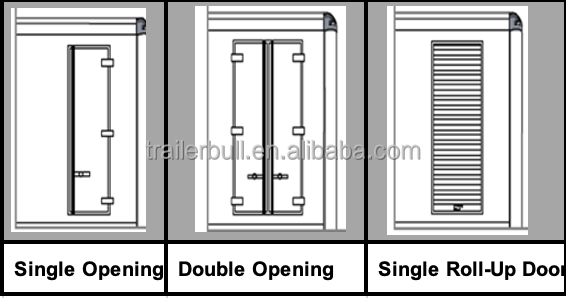

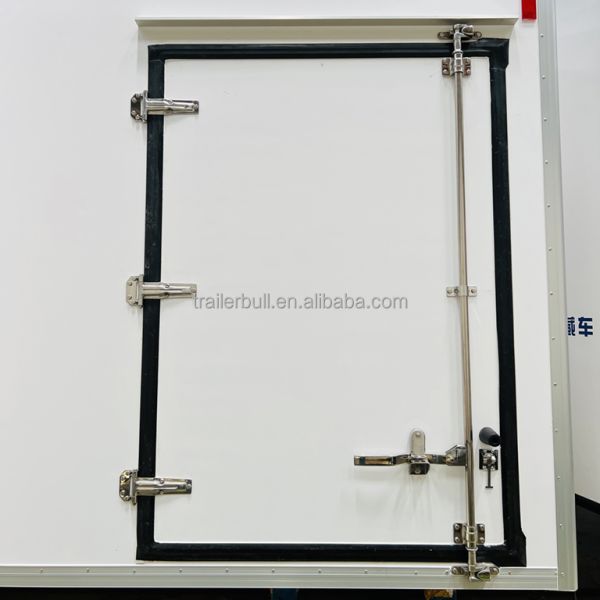

Side Door *(Optional)

* Side Door (Optional)
Opening	Single Opening
Opening		Width	600	Height:	1,937
Lock Gear	SUS304			SIZE:	φ16
Seal Gaskets	EPDM

Your Benefits

Best Insulaltion Composite

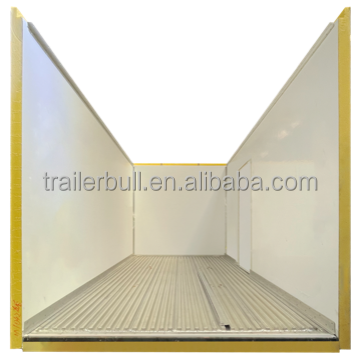

Standard Floor : Aluminum Duct

(H=15mm,20mm,35mm,50mm)

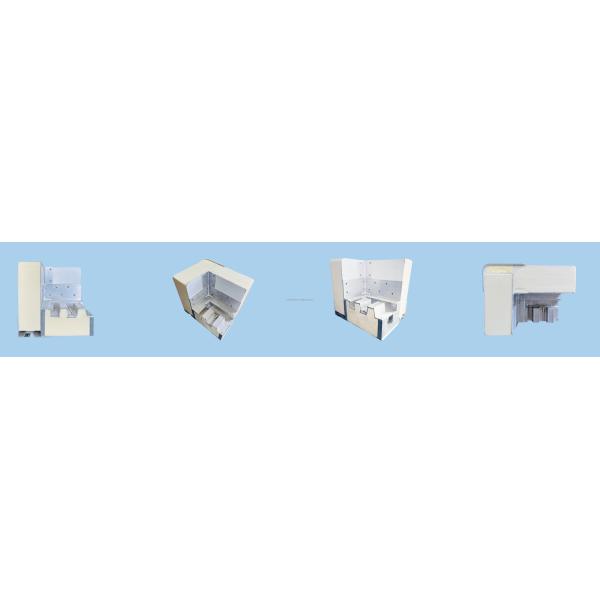

Aluminum Extrusion

90 Degree Aluminum Extrusion, L shap or Round Corner Choice

Cargo Fix Racks

Stainless Steel material for cargo fix installed on the side wall interior.

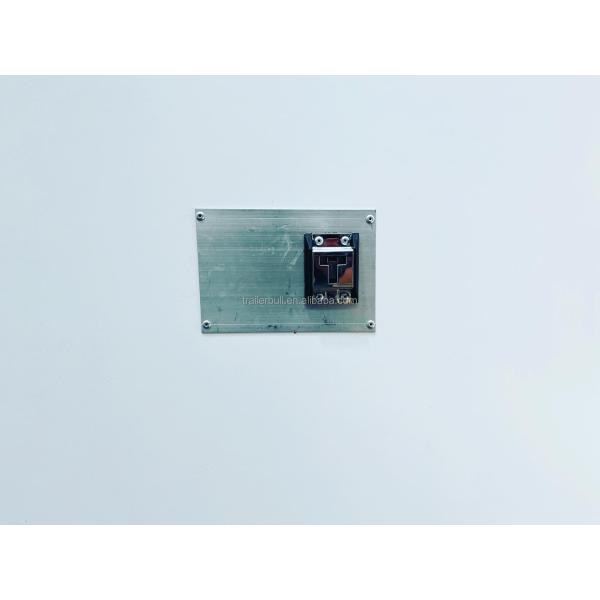

Door Holder

Rear and Side door Holder

Profiles Options

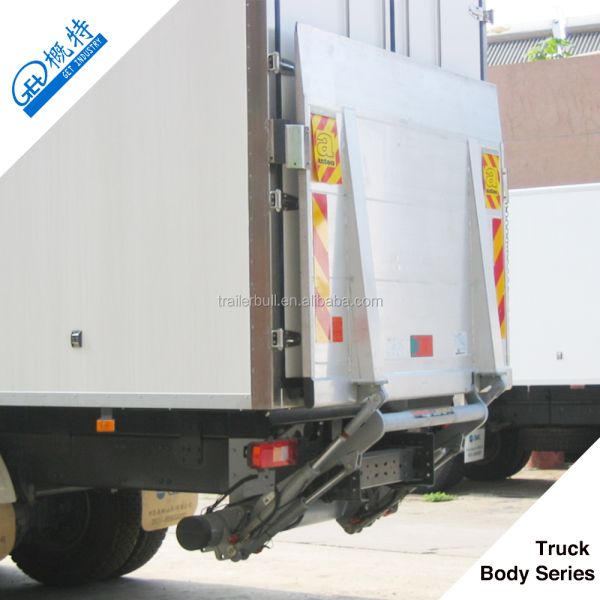

Hydraulic Taillift

Aluminium alloy or steel platform hydraulic tail lift 12/24V Type 1T ,1.5T,2T Model are available

Multi-Temperature Partition

Multi-temperature purpose longitudinally movable, insulated transverse partition wall

Refrigeration Units

Direct-Drive Units for Trucks and Vans

Direct-Drive Units for Trucks and Vans A complete line of refrigeration units for a wide variety of vehicle chassis and applications.

Diesel-Powered Truck Units

A complete line of self-powered diesel truck units that deliver lower cost of ownership through lower maintenance costs, improved fuel economy and unmatched reliability.

Trailer Units

A complete line of refrigeration units for a wide variety of big Trailers and semi trailer for long distance Fresh cargo delivery.

Single-Temperature Refrigeration Units

A complete line of single-temperature units for long haul and delivery applications.

Multi-Temperature Trailer Units

Precedent® multi-temp takes the premier trailer platform in the industry and optimizes it for food distribution.

Heating Units

Dependable heat for trailer and intermodal applications.

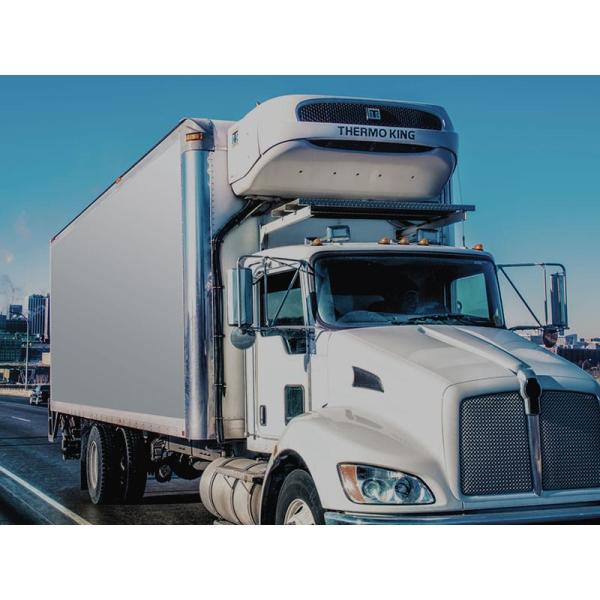

Thermoking Units

KV Series

RV Series

SV series

T Series

SLXi Series

Details @ www.Thermoking.com

Carrier Units

Supra Series

Vector Series

VIENTI series

X Series

Details @ www.Carrier.com

DENSO Units

N series

U series

DS series

PF series

TC series

TL series

Details @ www.Denso.com

Production Workshop

FAQ

What is refrigerated truck box body?

Refrigerated truck, sometimes we call it reefer truck box body. Sometimes we call it freezer truck box body. Sometimes chiller truck box body. Sometimes cold room truck box body. All in all, We calls it refrigerated truck.Reefer truck box body is a kind of box which can load the cargoes which need to keep cold and fresh. Such as icecream, chill chicken, chill fish, freezer meat, sometimes vegetables and so on.

Our refrigerated truck box body is the Sandwich structure. External FRP material+PU core+Internal FRP. Normally, the thickness of FRP is 2mm. It also can be customized. As the PU core, normally, the density is more than 40kg/m. And the thickness is changeable by customers’ request and designing request.

The parts of FRP reefer truck box body is adopted the highest configuration. They are 304 stainless steel parts for door lock and door frame. Aluminum profile for connecting all the panels. The importing rubbers make the door be sealing. So the whole reefer truck box body is all-closed without any gap.

What’s the material of your refrigerated truck body?

We can produce FRP(Fiberglass Reinforced Plastic), Color Steel Sheet and Stainless Steel Material for the refrigerated truck body.The Core Material can be PU,XPS.

If want the price, what should offer us the information?

You need offer us the material, size(length, width, height and thickness of the panel) and quantity of the truck body as the
basic information.

What is the CKD and CBU means ?

CKD means completely knocked down. That means offer all the parts of the truck body(Semi-finished products), you need assemble the box first, then amount to your truck chassis. Though you have to do some works, but It can save much shipping charges.
CBU means completely Building Unit. That is, we offer you the whole truck body, you just install it your truck directly.

How long life of your truck body?

It depends how will use it. Normally, the life is about 15~20 years
